Batteries are a crucial power source for small electronic devices. Among the many types of batteries, button batteries, thanks to their compact size, have become the standard power source for devices like calculators, remote controls, and digital watches, silently keeping these everyday items running. Despite their similar appearance and compact size, button batteries vary significantly in performance and compatibility, making them not universally interchangeable.
This article will focus on two widely used button batteries—the CR2430 and CR2032—and provide an in-depth analysis of key dimensions: How do their physical properties (size, capacity, and voltage) differ? How do differences in capacity and voltage affect device battery life and stability? How do subtle differences in chemical composition impact the user experience? We will also explore the application scenarios, respective advantages and limitations of each, and clarify their compatibility boundaries, helping you understand which device should use which battery and whether they can be interchanged. Understanding this information will help you avoid misconceptions when selecting a battery for your device, accurately matching your needs, and ensuring stable device operation.

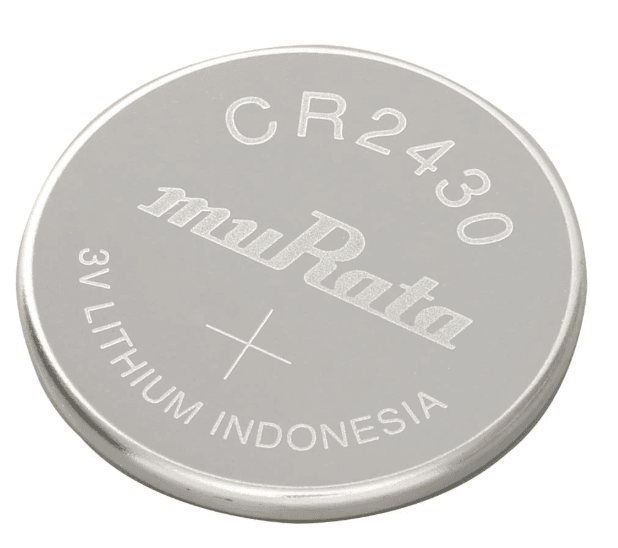

1， What is a CR2430 battery?
If you’ve ever taken apart small devices like digital watches and garage door openers, you’ve likely seen a round, thin button battery. The CR2430 is a very common type of button battery.
Starting with its most basic specifications, it has a diameter of approximately 24.5 mm and a thickness (or height) of 3.0 mm. This compact size fits perfectly in the battery compartments of most small devices, not taking up too much internal space and meeting the design requirements for “thinness.” It’s a non-rechargeable lithium battery. It’s important not to mistake it for a rechargeable model; otherwise, it won’t work and could pose safety risks.
It has a capacity of 300 mAh, so if it’s used to power a low-power device, it can last for quite a while without requiring frequent battery changes. Even more practical is its temperature adaptability. It operates reliably in temperatures ranging from -30°C to 60°C, ensuring reliable operation. Whether placed outdoors in winter or near a car’s central control panel in summer, there’s no need to worry about power outages. Furthermore, it has a long shelf life, typically up to 10 years. Keep a few at home in a cool, dry place away from direct sunlight, and use them whenever needed without sacrificing performance.
2，Advantages of CR2430 batteries
CR2430 has become the “standard battery” for many small devices because it has several outstanding advantages, each of which can solve the pain points of users in actual use.
- A wide operating temperature range, from -30°C to +60°C, ensures reliable operation in all climates.
- Long lifespan, primarily due to its extremely low self-discharge rate.
What is self-discharge? Simply put, the battery slowly loses its charge even when not in use. A low self-discharge rate means it can last. Ordinary dry cell batteries may run out of charge after a year or two, but CR2430 batteries can still retain a good charge even after three to five years. This makes them particularly suitable for devices that are only used occasionally, such as emergency lights and backup remote controls. Furthermore, their long lifespan reduces the need for frequent battery replacements, saving both money and the environment.
- Its nominal voltage is 3 volts, and its cutoff voltage is 2.0 volts.
You might be confused about this value, but a comparison will help. Traditional dry cell batteries (such as AA and AAA) typically have a nominal voltage of 1.5 volts. This means that one CR2430 battery pack has the same voltage as two ordinary dry cell batteries combined. A higher voltage means more power for devices. For example, in compact cameras, it allows for faster focusing and continuous shooting, preventing slow response times due to insufficient voltage. In devices like heart rate monitors, it also ensures more accurate data, eliminating errors caused by voltage fluctuations.
- Environmentally friendly: Lithium batteries generally do not contain harmful metals such as mercury, cadmium, and lead.
Some batteries previously contained mercury. If improperly disposed of, this mercury can leach into soil and water, polluting the environment and potentially affecting human health. Because CR2430 batteries contain no harmful substances, they can be disposed of in the normal manner (e.g., in hazardous waste recycling bins) after disposal, resulting in a lower environmental burden and aligning with the current “green consumption” philosophy.
- Highly practical. In addition to the everyday devices mentioned above, they can also be used in specialized environments.
For example, in high-humidity bathrooms (for electronic thermometers and hygrometers in bathrooms) and in high-altitude mountainous areas (for outdoor tracking devices). Their performance is not significantly affected by high humidity or low air pressure. Unlike some batteries, which can experience poor contact in humid environments or a decrease in charge at high altitudes, the CR2430’s adaptability makes it suitable for a wider range of scenarios.
- Application scenarios of CR2430 batteries
The CR2430’s application scenarios are actually broader than many people realize. It can be found in everything from everyday gadgets to specialized equipment.
It can be found in familiar items like calculators, digital watches, and garage door openers, as well as sophisticated medical and fitness devices like thermometers and heart rate monitors, and even children’s toys and game consoles. In modern life, it’s also commonly used in smart devices like car keys, item trackers like AirTag, various sensors, and backup power supplies for home appliance circuit boards. It also plays a significant role in commercial applications, such as supermarket electronic price tags and shopping mall POS systems.
- How to choose the correct replacement battery for your device?
If you’re shopping for batteries and find the model number “CR2430” isn’t available, don’t worry. There are many equivalent batteries available, and you can find the right one by identifying the model numbers.
Common equivalents include DL2430, ECR2430, KCR2430, KECR2430, BR2430, KL2430, LM2430, ML2430, 5011LC, and LF1/2W. These batteries are essentially identical to the CR2430 in core specifications like size, voltage, and capacity, making them interchangeable in most cases. (A word of caution: while these are equivalent batteries, the manufacturing processes and quality control may vary between brands, so choose a reputable and well-known brand.)
One important caveat: direct substitution can be risky. While these batteries may appear similar, their chemistry, capacity, and discharge characteristics may differ slightly. Before making a replacement, it’s crucial to verify the battery model and specifications specified in the device manufacturer’s manual.
Tip: If your device is delicate or expensive (such as professional medical equipment or high-end cameras), it’s best to follow the manufacturer’s recommendations when choosing batteries. Even if the battery is equivalent, check to see if the manufacturer specifically states “X battery type is acceptable” to avoid device malfunctions due to improper battery selection.
Some camera manufacturers will clearly state in their manuals that “CR2430 or DL2430 batteries are recommended.” If this is the case, follow the instructions and you’ll never go wrong. If the manual doesn’t specify, check the model, chemistry, and capacity of the original battery to ensure it matches the original.
- What is the difference between CR2430 and the common CR2032?
Many people confuse CR2430 and CR2032 when buying button batteries because they are both common button lithium batteries and look a bit similar in appearance, but in fact there are many differences between the two and they cannot be used interchangeably.
- Dimensions:

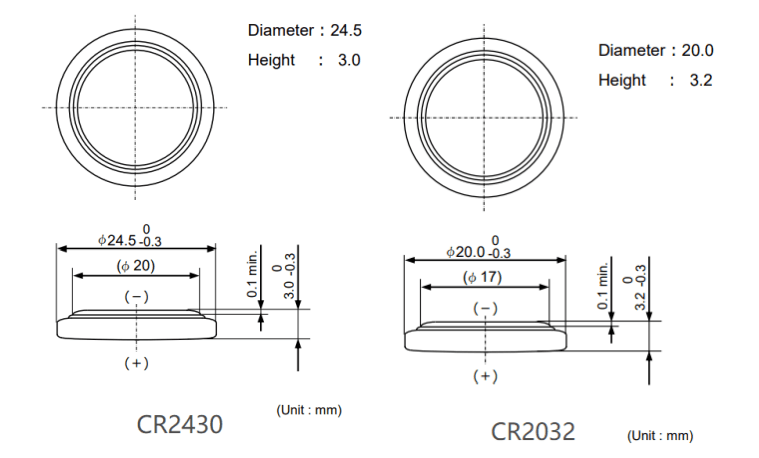

The CR2430 has a diameter of 24.5 mm and a thickness of 3.0 mm (wider and thinner); the CR2032 has a diameter of 20 mm and a thickness of 3.2 mm (narrower and slightly thicker).
This inch difference may not seem significant, but the battery compartments of devices are designed for specific dimensions. For example, if a device originally uses a CR2032 battery with a 20 mm diameter, forcing a CR2430 (24.5 mm diameter) into the compartment will not fit and may even deform the compartment. Conversely, if a device originally uses a CR2430 battery, the CR2032 will move around in the compartment due to its smaller diameter, resulting in poor contact and malfunctioning of the device. Therefore, based on their dimensions, the two are not interchangeable.
- Capacity and Voltage:
The capacity of a CR2430 is typically 270mAh (different brands may have slight variations, such as 280mAh or 300mAh). The capacity of a CR2032 is generally 220mAh, making the CR2430 significantly higher. A higher capacity means the battery can store more power, and for devices with the same power consumption, it lasts longer. For example, in a digital watch, a CR2430 might last two years, while a CR2032 might only last a year and a half, requiring replacement sooner.
The rated voltage of a CR2430 is 3V, while that of a CR2032 is 2.8V. While the voltage difference is only 0.2V, it can be significant for sensitive devices. For example, some devices are designed for 2.8V circuitry. If a 3V CR2430 is used, a slightly higher voltage could overload the device’s circuitry, leading to freezes, overheating, or even damage. Conversely, if a device requires 3V but uses a 2.8V CR2032, the voltage may be insufficient, resulting in insufficient power, such as a remote control not responding or inaccurate sensor data. Therefore, the voltage should be selected based on the device’s requirements, not just capacity.
- Chemical Composition:
The CR2032 is a lithium-manganese dioxide battery, while the CR2430 is a lithium-manganese dioxide battery.
You might think these are similar, but in reality, their discharge characteristics differ slightly. For example, in low-temperature environments, CR2430 batteries have better discharge performance than CR2032 batteries. This means that in winter, devices using CR2430 batteries will be more stable than those using CR2032 batteries. In high-power devices (such as small cameras), CR2430 batteries have a longer discharge life and won’t run out of power as quickly as CR2032 batteries. However, this difference may not be noticeable in everyday low-power devices (such as electronic watches and calculators) and will only be noticeable in special environments or on high-power devices.
6. Practical Guide to Choosing CR2430 Batteries
When purchasing a CR2430 or similar battery, don’t just look at the price; instead, pay attention to several key technical specifications to ensure you’re buying a safe and reliable product. Check the rated capacity (mAh). The higher the value, the longer the battery life. Also, ensure the nominal voltage is 3V, as this is essential for proper device operation. The operating temperature range determines whether the battery can maintain stable output in your environment. Ideally, choose a corrosion-resistant casing material to ensure long-term safety. For disposable lithium batteries, confirm the characteristics of the original, non-rechargeable battery. Also, pay attention to the product’s production date and expiration date. Choosing a fresher battery ensures you receive the full promised charge.
The CR2430 button battery, with its key advantages of “precisely adapting to small devices, balanced performance to address key pain points, and clear selection and replacement logic,” has become a reliable choice for low-power devices. Its size, capacity, and temperature range are precisely tailored to device requirements. Its wide operating temperature range, low self-discharge, high voltage, and environmentally friendly features address practical user challenges, making it suitable for everyday, professional, and commercial applications. Furthermore, clear equivalent models, comparisons with the CR2032, and purchasing recommendations provide comprehensive guidance from user experience to practical application. Whether a home user is replacing a remote control battery or a business is selecting a power supply for a device, the CR2430 meets diverse needs with its stable performance and clear selection logic.
FAQs
Q1: Where can I buy CR2430 batteries?
Offline, you can buy them at electronics stores, hardware stores, department stores, specialized battery shops, or authorized brand dealers. Online, you can purchase them through official stores on major e-commerce platforms and online retailers.
Q2: Can the CR2430 be used in an environment of -20°C?
Yes, its operating temperature range is -30°C to +60°C, and -20°C is within its normal operating range, providing stable power.
Q3: Are CR2430 and CR2032 batteries interchangeable?
No. They have different sizes, and directly interchanging them may result in installation problems or poor contact.
Q4: What are the most important precautions when replacing batteries?
Check the model number specified by the device manufacturer to avoid using the wrong size and voltage.
Q5: What is its shelf life?
Under normal conditions, it has a shelf life of up to 10 years.
