Overview
The Micron MT29F2G01ABAGDWB-IT:G is part of Micron’s 2Gb SPI NAND Flash Memory family designed for embedded systems requiring reliable, cost-efficient, non-volatile storage. Built on SLC NAND technology and operating through the Serial Peripheral Interface (SPI), the device offers higher density and improved write performance compared with conventional SPI NOR solutions.
This industrial-grade variant operates from –40°C to +85°C, making it suitable for long-life applications in IoT, networking, industrial control, and consumer electronics.
Core Parameters
| Parameter | Specification |
|---|---|
| Main Device | Micron MT29F2G01ABAGDWB-IT:G |
| Density | 2Gb SLC NAND |
| Voltage | 2.7V–3.6V |
| Page Size | 2176 bytes (2048 + 128 spare) |
| Block Size | 64 pages (128K + 8K bytes) |
| Planes | 2 planes / 1024 blocks per plane |
| Interface | SPI ×1 / ×2 / ×4 |
| Max Clock | 133 MHz |
| Endurance | 100,000 P/E cycles |
| Data Retention | 10 years (uncycled) |
| ECC | 8-bit on-die ECC |
| Operating Temp | –40°C to +85°C |

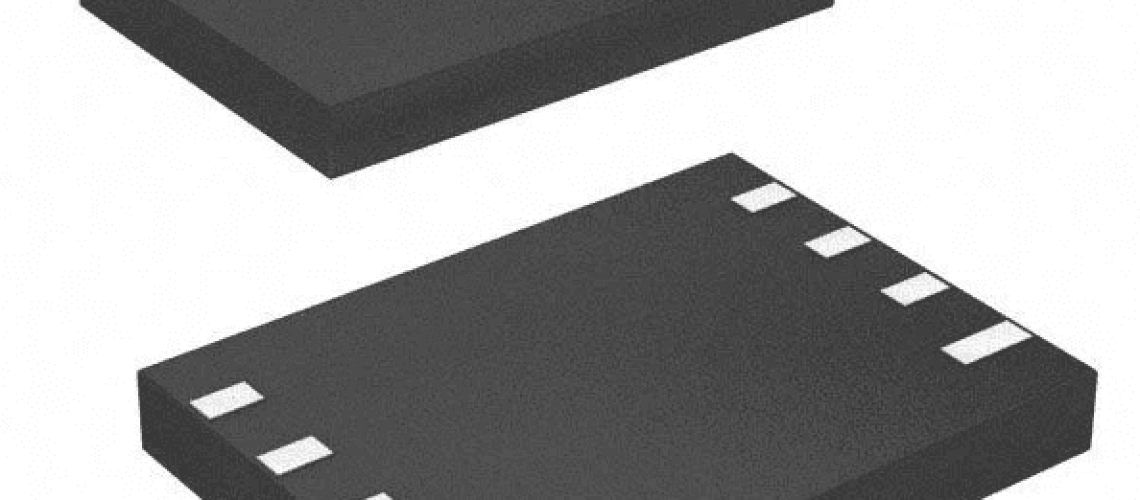

| Package | 8-pin U-PDFN (DWB code) |
The DWB package option provides a compact footprint suitable for high-density embedded PCBs.
Features
1. Serial Peripheral Interface (SPI) Support
The MT29F2G01ABAGDWB-IT:G supports standard, dual, and quad SPI modes, allowing flexible throughput scaling from single-bit to four-bit transfers.
2. Internal ECC for Reliability
Integrated 8-bit ECC per sector ensures robust data integrity without requiring host-side ECC implementation, simplifying firmware design.
3. Cache-Based Read/Write Architecture
The device uses a page-to-cache pipeline for efficient read operations and fast sequential programming.
4. Security and Protection
- Software block protection
- Hardware write-protect pin (WP#)
- Lock-tight mode
- OTP space for secure configuration
5. Industrial-Grade Endurance
With 100k program/erase cycles and extended-temperature operation, the device performs reliably in long-lifecycle embedded products.
Typical Application Scenarios
1. Industrial IoT and Edge Devices
Ideal for sensors, controllers, and gateways requiring stable firmware storage across harsh environments.
2. Networking Equipment
Used in routers, ONU/ONT units, Wi-Fi modules, and smart home hubs.
3. Automotive and Industrial Electronics
Suitable for dashboards, HMIs, PLCs, and motor control modules requiring high endurance and secure storage.
4. Embedded Linux Systems
Common for U-Boot, kernel, and filesystem storage (YAFFS, UBIFS) due to high reliability and low pin count.
5. Consumer Electronics
Applies to set-top boxes, smart speakers, wearables, and other compact devices needing cost-effective Flash memory.
Performance Comparison: SPI NAND vs SPI NOR
| Metric | SPI NAND (MT29F2G01ABAGDWB-IT:G) | SPI NOR |
|---|---|---|
| Density | High (Gb class) | Lower (Mb class) |
| Write Speed | Faster | Slower |
| Read Speed | High with cache | Faster random |
| Cost per Bit | Significantly lower | Higher |
| Endurance | High (100k) | Very high |
| XIP Support | Not available | Supported |
Conclusion:
The MT29F2G01ABAGDWB-IT:G is the preferred choice for cost-efficient storage, firmware images, and data logging, whereas SPI NOR remains the option for execute-in-place systems.
Manufacturer Profile: Micron Technology
Micron Technology is a global leader in memory and storage semiconductors, supplying DRAM, NAND, NOR, and advanced Flash solutions for industrial, automotive, and consumer markets.
The MT29F2G01ABAGDWB-IT:G and its related series (MT29F2G01ABAGDSF, MT29F2G01ABAGD12) reflect Micron’s commitment to stable long-term supply and robust industrial-grade performance.
