Overview

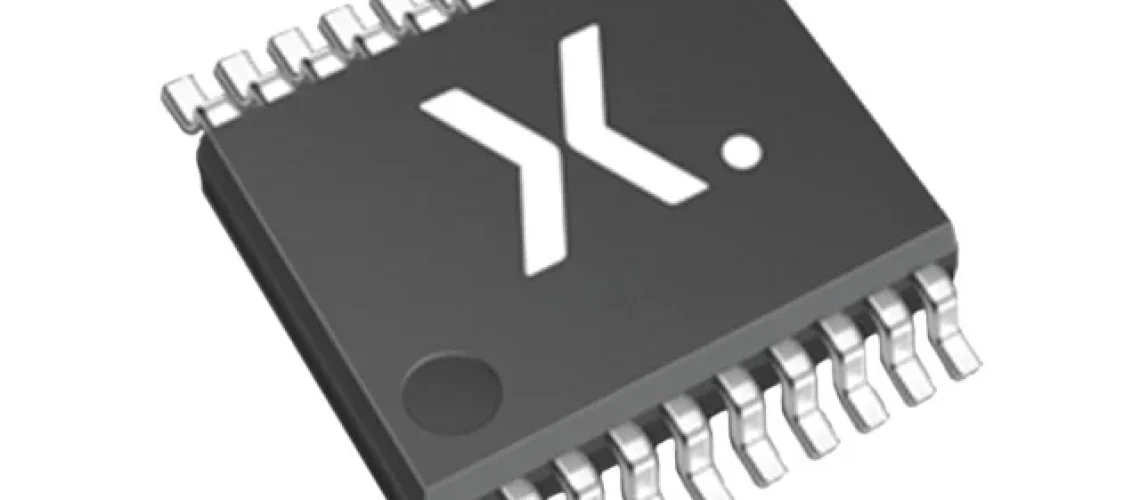

The 74AHCT541PW is an advanced octal buffer/line driver with 3-state outputs, designed for high-speed digital applications. This device is ideal for interfacing between different voltage levels, especially in mixed-voltage environments, and offers a broad supply voltage range. Additionally, the 74AHCT541PW,118 and 74AHCT541PW-Q100 are part of the same family, with specific variants targeting automotive and other demanding applications.
Core Parameters
The 74AHCT541PW offer the following key specifications:
- Supply Voltage (VCC): 2.0V to 5.5V
- Input Voltage: Overvoltage tolerant, up to 5.5V
- Output Voltage: 0V to VCC
- Operating Temperature Range: -40°C to +125°C
- Inputs: TTL-level for 74AHCT541 variants
- Package: 20-pin TSSOP (SOT360-1)
The 74AHCT541PW,118 is a variant of the 74AHCT541PW, specifically designed with extended temperature tolerance for various industrial and automotive applications. These specifications make it an excellent choice for systems that require reliable performance in fluctuating voltage environments.
74AHCT541PW Features
- Overvoltage Tolerant Inputs: Supports inputs up to 5.5V, which is beneficial in mixed-voltage systems.
- 3-State Outputs: The device includes two output-enable inputs (OE1 and OE2), providing flexible control over data output states.
- High-Speed Operation: Features balanced propagation delays and is optimized for high-speed communication.
- Low Power Consumption: The CMOS design ensures low power dissipation, making it suitable for energy-efficient applications.
- Automotive-Grade Option: The 74AHCT541PW,118 is designed for automotive applications, offering higher reliability under extreme conditions.
Typical Application Scenarios
- Bus Drivers: Excellent for systems requiring data bus management, such as communication between microcontrollers and other digital components.
- Level Shifting: Ideal for translating TTL and CMOS levels in systems with mixed voltage requirements.
- Signal Isolation: Used in applications where signal isolation is necessary to protect sensitive circuits.
- Automotive Applications: With the 74AHCT541PW,118 and 74AHCT541PW-Q100, this device is optimized for automotive-grade applications, ensuring robust performance in harsh environments.
Performance Comparison
| Specification | 74AHCT541PW | 74AHCT541PW,118 | 74AHCT541PW-Q100 |
|---|---|---|---|
| Propagation Delay (tpd) | 5.0 ns (typical) | 5.5 ns (typical) | 5.5 ns (typical) |
| Enable Time (ten) | 5.0 ns (typical) | 5.5 ns (typical) | 5.5 ns (typical) |
| Disable Time (tdis) | 6.5 ns (typical) | 7.0 ns (typical) | 7.0 ns (typical) |
| Temperature Range | -40°C to +125°C | -40°C to +125°C | -40°C to +125°C |
Conclusion
The 74AHCT541PW and its variants offer a range of options for various applications, including automotive, industrial, and consumer electronics. The 74AHCT541PW,118 is ideal for industrial environments with extended temperature tolerances, while the 74AHCT541PW-Q100 meets the stringent requirements of automotive applications.
