The PMEG6020ER,115, manufactured by Nexperia, is a high-efficiency 60 V, 2 A Schottky barrier rectifier designed for compact and power-constrained systems. Engineered with Nexperia’s well-known focus on low VF performance, robust reliability, and superior thermal behavior, this device is ideal for modern DC-DC conversion, low-loss rectification, and reverse polarity protection designs.
Core Features
Nexperia’s PMEG6020ER,115 delivers strong electrical performance across a broad range of power applications:
- Low forward voltage (VF):
Around 0.46 V at IF = 2 A, reducing conduction losses and maximizing conversion efficiency. - 60 V reverse voltage (VR):
Suitable for multi-voltage power architectures such as 5 V, 12 V, and 24 V rails. - Very low leakage current (IR):
Typical 60 µA at 60 V, helping minimize standby consumption in energy-sensitive systems. - High surge capability:

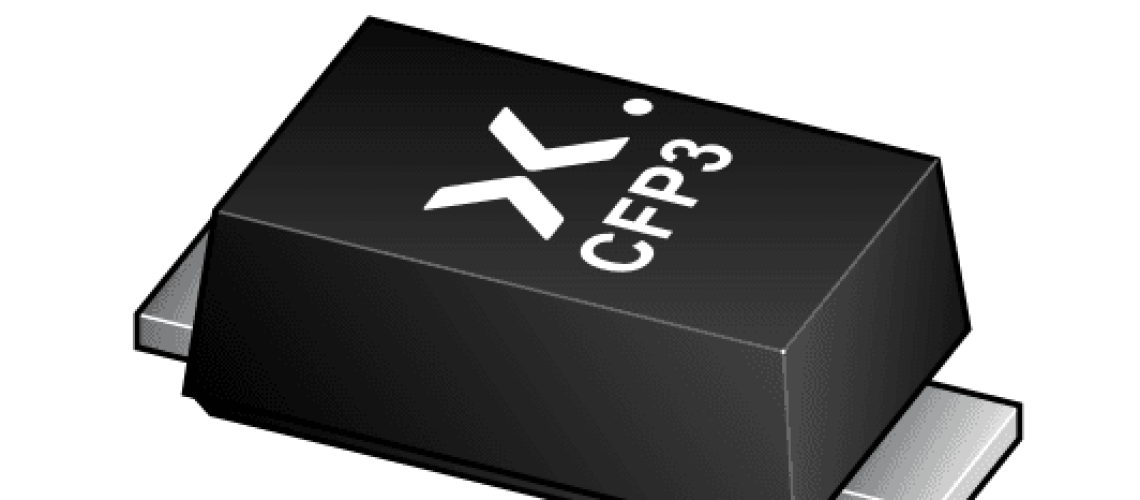

IFSM up to 50 A, offering additional protection during power-on or transient events. - Compact SOD123W (CFP3) package:
Nexperia’s thermally enhanced design supports reliable performance in space-limited layouts.
Key Electrical Parameters
| Parameter | Conditions | Typical | Maximum |
|---|---|---|---|
| Forward current IF(AV) | Tsp ≤ 135°C | — | 2 A |
| Reverse voltage VR | — | — | 60 V |
| Forward voltage VF | IF = 2 A | 0.46 V | 0.53 V |
| Reverse current IR | VR = 60 V | 60 µA | 150 µA |
| Surge current IFSM | 8.3 ms | — | 50 A |
These values reflect Nexperia’s emphasis on efficient conduction, low thermal resistance, and stable performance across operating conditions.
Typical Application Scenarios
Thanks to its low VF and compact footprint, the PMEG6020ER,115 is well suited for:
- DC-DC converter output rectification
- Reverse polarity and input protection
- Low-loss OR-ing circuits
- LED lighting and driver modules
- Battery-powered and portable electronics
- Industrial control and communication subsystems
Nexperia’s consistent manufacturing quality ensures reliable performance in both consumer and industrial environments.
Performance Advantages
Compared to general-purpose rectifiers, Nexperia’s PMEG series offers:
- Lower conduction and switching losses
- Higher efficiency at medium loads
- Superior thermal performance
- A smaller footprint vs. SMA/SMD standard diodes
- Better long-term reliability and stability
These advantages make the PMEG6020ER,115 a strong choice for engineers building efficient, thermally optimized designs.
Manufacturer Profile
Nexperia is a global leader in discrete semiconductors, power devices, and analog components. Known for automotive-grade reliability and high-volume production quality, Nexperia supplies essential components used in automotive, industrial, telecom, and consumer applications worldwide. Their PMEG series exemplifies the company’s focus on efficient, compact, and robust power solutions.
